Product Name:FY-UV2508S

Product Details:
Model:
FY-UV2508S
Select Payment and Shipping Terms:
Min. Order Quantity:
0
Place of Origin:
Min. Order:
FOB Price:
0.00-0.00 /
Shipping Terms:
Shippment Port:
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
0
Delivery Time:
Packaging:

Detailed Product Description:

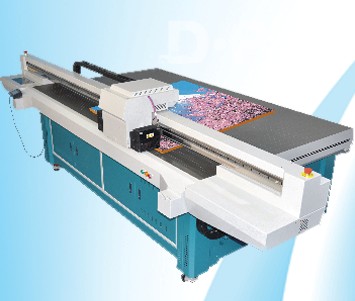

 CHALLENGER UV Printer  FY-UV2508S:

Multifunctional Flatbed Printer, High-effective Maker
1
High resolution ,high speed ,can compete with any import UV printer
2
Super width printing platform,max media weight is up to 1400KG, it could be fit for most  of the stardard media sizes and weights;
3
Max media height is 58mm, carriage height can be adjusted by touch screen or by up and down button manually, Carriage height showed on the screen ,make the print carriage height adjustment more sample and easier;
4
Platform suction design, applicable to different media;
5
Import UV lamp system , make the printout more steady

Model

FY-UV2508S

Printhead

Drop on demand Piezo Head(SPT 1020-35pl)

Number of Printhead

6/8 Heads

Maximum Print Width

2420mm X 1220mm

Print Speed

Draft

42 M2/hr

Standard

21 M2/hr

High Quality

15 M2/hr

Media

Max.Width

2500mmX1250mm

Max.Weight

1400kg

Type

Paper,foam board, ceramic tile, glass, sheet metal,etc.

Thickness

58mm(Max)

Ink

Type

UV Ink (C\M\Y\K\LC\LM+2W)

Capacity

3.25L per Color Main Tank

Auto Cleaning System

Positive Pressure Cleaning, Anti-Clogging Flash Function&Capping System

Print Interface

USB 2.0

Power Specification

220V/3600W(UV Light 2000W)

Operation Environment

Temperature 20℃-28℃Humidity 40%-60%

Compatible RIP Software



Dimension&Weight

Machine

L3765xW1769xH1220mm

Package

L3900xW1900xH1350mm
