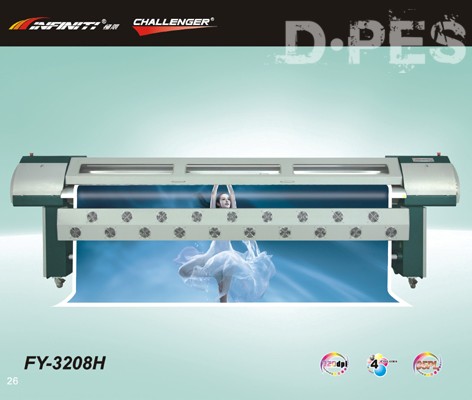

SOLVENT PRINTER FY-3208H
Equipped with industrial piezo printhead which comes with 510 nozzles, printing width of 72mm, and 720 DPI printing resolution.
1 Double 4 color printing ,the standard output achieves 76m2/hr;
2
AC servo motor is used to run the carriage quicker and more stable;
3
Individual color purging minimizes the waste of the ink;
4
3 way intelligent heater helps bring more vivid output;
5
The entire printing platform and the girder are made of the alloy-aluminum which is more strong and flat;

Model

FY-3208H

Printhead

Drop on demand Piezo Head

Number of Printhead

8 Heads

Maximum Print Width

3200mm

Print Speed

Draft

101 M2/hr

Standard

76 M2/hr

High Quality

51 M2/hr

Media

Max.Weight

80kg

Type

Frontlit, Backlit, Vinyl,Polyester,Window Film Leather

Height

4mm(Max)

Ink

Type

Solvent ink

Capacity

1L or 5L per Color Main Tank

Auto Cleaning System

Positive Pressure Cleaning, Anti-Clogging Flash Function&Capping System

Print Interface

USB 2.0/Optical Fiber

Power Specification

Printer: AC 220V 660W
Heater: AC220V 1900W

Operation Environment

Temperature 20℃-28℃Humidity 40%-60%

Compatible RIP Software

 Photoprint,Ultraprint,Maintop

Dimension&Weight

Machine

Printer :L4520mm X W860mm X H1340mm  398kg
