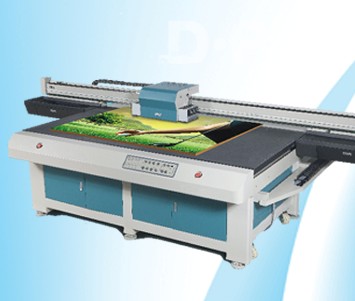

CHALLENGER UV Printer FY-UV2508L:
Multifunctional Flatbed Printer, High-effective Maker
1、 Height-adjustable beam with max.100mm print thickness, which can accommodate most of the substrates used in décor and advertising industries;
2、Double guide and double lead screw is used for Y axis to bring a stable and precise moving system;
3、4 color, 4 color plus white, 6 color, 6 color plus white. Different color match for different substrates for a perfect output;
4、3 levels of power capacity choices: high, medium and low. The switch and capacity choice is controlled from software:
5、Collision avoidance system is used to bring more protection on the printhead and UV lamp, which stops carriage moving and switch off the UV lamps immediately when any collision happens to the carriage.
|
Model
|
FY-UV2506L
|
|
Printhead
|
Drop on demand Piezo Head(SPT 1020-35pl)
|
|
Number of Printhead
|
6/8 Heads
|
|
Maximum Print Width
|
L2500mm X W1250mm
|
|
Print Speed
|
Draft
|
43 M2/hr
|
|
Standard
|
22 M2/hr
|
|
High Quality
|
15 M2/hr
|
|
Media
|
Max.Weight
|
1400kg
|
|
Type
|
Paper,foam board, ceramic tile, glass, sheet metal,etc.
|
|
Thickness
|
100mm(Max)
|
|
Ink
|
Type
|
UV Ink (C\M\Y\K\LC\LM+2W)
|
|
Capacity
|
3.25L per Color Main Tank
|
|
Auto Cleaning System
|
Positive Pressure Cleaning, Anti-Clogging Flash Function&Capping System
|
|
Print Interface
|
USB 2.0
|
|
Power Specification
|
Printer:AC 220V 2000W UV Lamp:AC 220V 2400W
|
|
Operation Environment
|
Temperature 20℃-28℃Humidity 40%-60%
|
|
Compatible RIP Software
|
ULTRAPRINT
|
|
Dimension&Weight
|
Machine
|
L4450mm X W2080mm X H1250mm 1200kg
|
|
Package
|
L4600mm X W2240mm X H1500mm
|
